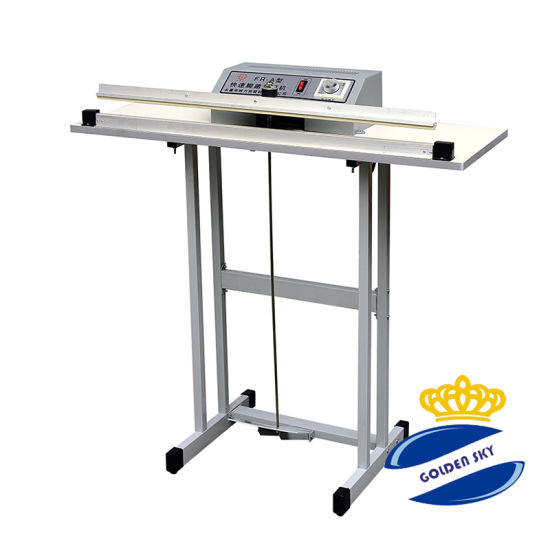

Foot Operated Pedal Impulse Heat Sealer Bags Tubing FR-700
Supply 28"/700 mm/28 inch/70 cm width Simple Type Foot Operated Pedal Impulse Heat Sealer For Bags and Tubing machine from chinese factory.Simple Type Foot Operated Pedal Impulse Heat Sealer For Bags and Tubing machine made in chinese factory is Very low to ground (sized for a very small adult)- had to modify the entire unit to work for an average sized person. Cut and extended the legs and had to create an adapter to lengthen the screw that connects to the foot pedal. The heat paper the rolls over the heating element needs a better design. Doesn't stay in place (unrolls after some use)- over all- disappointed in craftsmanship. BUT as a sealing unit itself- works like a charm! This effectively increases the productivity of the user allowing for higher volumes of production. A standard impulse sealer will close a plastic bag up to 6 mil thick. Another rule of thumb is to purchase a sealer that is 2 inches larger than the widest bag that needs to be heat sealed. The one inch extra on each side of the bag allows for strong seals and faster operations. Both 2 millimeter and 5 millimeter sealing widths are available for these type of foot sealers. This foot sealer comes equipped with a foot pedal activator in addition to a pedestal, stand, adjustable worktable and foot pedal. Impulse Sealer Supply offers a wide variety of impulse sealers for a full spectrum of packaging needs.
Many size of pedal stamping impulse heat sealer available:
Many size of pedal stamping impulse heat sealer available:
| Item No. | Impulse power | Max sealing length | Max sealing width | Hearing time | Weight |
| FR-300 | 350W | 300mm | 2-3mm | 0.2-2S | 7.2KGS |
| FR-400 | 420W | 400mm | 2-3mm | 0.2-2S | 7.5KGS |
| FR-500 | 500W | 500mm | 2-3mm | 0.2-2S | 8.8KGS |
| FR-600 | 550W | 600mm | 2-3mm | 0.2-2S | 10KGS |
| FR-700 | 600W | 700mm | 2-3mm | 0.2-2S | 11KGS |
| FR-800 | 620W | 800mm | 2-3mm | 0.2-2S | 13KGS |
| FR-1000 | 750W | 900mm | 2-3mm | 0.2-2S | 14.5KGS |
| FR-1200 | 850W | 1200mm | 2-3mm | 0.2-2S | 16KGS |
| FR-1400 | 950W | 1400mm | 2-3mm | 0.2-2S | 17.5KGS |
